Panoramic Visibility That Enhances the Building Experience

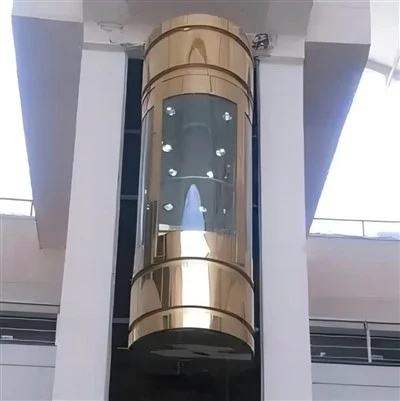

Panoramic Glass Elevators deliver strong visual connection to surroundings, with transparent cabins overlooking atriums, lobbies, gardens or city views to create open spaces and turn rides into sightseeing for hotels and public venues.
Safety-Laminated Glass and a Stable Supporting Structure
Equipped with safety‑laminated glass and stainless‑steel structures, all cabin components can be customized, with final specifications subject to local codes and approved drawings, supported by our engineering consultation for concrete, steel or glass hoistways.
Flexible MR and MRL Configuration
Both MR and MRL types are available to suit new construction, renovation and various hoistway projects, and our team will recommend proper layout and dimensions based on your shaft information and architectural drawings.
Capacity and Layout Options for Different Project Types
Rated load ranges from 630 kg to 1600 kg with flexible cabin layouts supporting up to 21 passengers for commercial, public and hospitality projects, final sizes confirmed by official technical drawings.
Smooth, Controlled, and Dependable Daily Operation
It comes with complete standard safety and operating functions, while optional accessories like remote monitoring, CCTV, air‑conditioning and group control can be added to match specific project demands.
A Custom Cabin Identity for Your Building
Rich cabin finish options including stainless steel, LED lighting and diverse flooring materials are offered to realize minimalist, premium hotel or sightseeing styles matching your building design.
Recommended Applications
|
Application
|
How the Glass Panoramic Elevator Adds Value
|
|
Hotels, Resorts & Serviced Apartments
|
Creates a premium arrival and circulation experience while complementing atriums, lobbies, garden views, and signature interiors.
|
|
Shopping Malls & Retail Centres
|
Makes movement between levels more visible and intuitive, helping connect retail zones around open atriums.
|
|
Office Buildings & Mixed-Use Developments
|
Adds a distinctive architectural element to reception spaces and shared circulation areas while serving daily passenger flow.
|
|
Tourist Attractions & Viewing Buildings
|
Connects visitors with landscapes, exhibition spaces, and viewing levels through an immersive vertical journey.
|
|
Civic, Cultural & Public Buildings
|
Supports accessible circulation while preserving openness and visibility in museums, libraries, stations, and public halls.
|
|
Glass, Steel & Standalone Shaft Projects
|
Provides a flexible passenger-lift solution that can be coordinated with transparent, metal, or concrete shaft structures.
|
Panoramic Glass Elevator Technical Parameters
|
Category
|
Parameter
|
Specification
|
|
Performance
|
Rated load
|
630–1,600 kg
|
|
Performance
|
Passenger capacity
|
Up to 21 persons, depending on selected load and cabin layout
|
|
Performance
|
Rated speed
|
1.00 m/s, 1.50 m/s, or 1.75 m/s
|
|
Performance
|
Maximum travel
|
Up to 90 m
|
|
Configuration
|
Machine-room arrangement
|
MR or MRL
|
|
Cabin layout
|
Standard cabin plan range
|
From 1,100 × 1,400 mm at 630 kg; larger layouts are available up to 1,900 × 1,800 mm or 1,800 × 2,100 mm at 1,600 kg
|
|
Entrance
|
Standard door opening width
|
700–1,100 mm, depending on cabin plan
|
|
Entrance
|
Standard door opening height
|
2,100 mm
|
|
Shaft requirement
|
Pit depth
|
Approximately 1,750–2,250 mm, depending on selected layout and configuration
|
|
Shaft requirement
|
Top-floor height
|
Project-specific; refer to the confirmed MR or MRL layout drawing
|
|
Cabin
|
Glass and finish options
|
Safety-laminated glass, stainless steel, customised lighting, handrails, flooring, COP and display options
|
Standard Functional Configuration
|
Function category
|
Typical functions
|
|
Passenger protection
|
Door-lock protection, overload protection, motor overload protection, anti-nuisance detection, and emergency lighting.
|
|
Emergency operation
|
Fire emergency return, alarm bell, emergency lighting, and emergency stop functions.
|
|
Ride and door control
|
Levelling fine-tuning, automatic door opening and closing, door open/close buttons, and arrival chime.
|
|
Operational management
|
Full-load and non-stop function, parking switch, service-floor setting, time recorder, and independent running.
|
Optional Project Features
|
Optional system
|
Project benefit
|
|
ARD / Auto Rescue Device
|
Supports controlled passenger rescue during a power interruption, subject to the project configuration.
|
|
IC Card Access Control
|
Helps manage authorised floor access in hotels, offices, and residential projects.
|
|
Remote Monitoring
|
Wired or wireless monitoring options support maintenance visibility and operational management.
|
|
CCTV Camera & Multimedia Screen
|
Adds security visibility and a communication or branding surface within the cabin.
|
|
Voice Announcement & Air Conditioning
|
Enhances passenger information and cabin comfort where required.
|
|
Duplex / Group Control
|
Helps coordinate multiple lifts in projects with more demanding passenger flow.
|
Why Choose VOLKSPACE for Your Glass Elevator Project?
FAQ
What defines a panoramic glass elevator?
It is a transparent‑cabin passenger lift combining vertical transport with architectural aesthetics, delivering open views for commercial, hospitality and public‑space projects.
How safe is the glass cabin for daily use?
It uses high‑strength safety laminated glass and reinforced metal frames. All safety parameters comply with local building codes and approved project drawings.
Which shaft types work with this panoramic elevator?
It supports concrete, steel and full‑glass shafts, and fits both new construction and renovation scenarios.
How do I pick between MR and MRL versions?
MR requires dedicated machine‑room space for heavy‑duty use; MRL saves building space. Our team selects the proper solution based on your shaft size, travel height and passenger‑flow needs.
Is full cabin customization available?
Yes. Cabin size, finishes, lighting, flooring, handrails and smart functions can be adjusted to match your project's design style.
What information do you need for a quotation?
Please supply building type, floors, travel height, load capacity, shaft dimensions or drawings, cabin preferences and special functional requirements.
